Assembled HexR5 V2 development build with horizontal braces. Electronics and accessories are not included.

Slowstyle / Racing frame

Slowstyle HexR5 Racing Frame

Out of stock

The HexR5 V2 racing frame, including the pictured horizontal braces, is currently in testing and development. The supplied reference design uses a compact 20 × 20 mm mounting layout and 14 mm nano cameras. Final V2 specifications and kit contents remain subject to confirmation.

Price to be announced

Ordering is not open. A restock date has not been announced.

Ask about this frame ↗

The specifications and kit list below are reference information from the earlier HexR5 guide. Final V2 specifications and kit contents remain subject to confirmation. The listed 51 g excludes 3D prints and arm braces; it is not a final V2 assembled weight.

Build details

Reference specifications

Arms: 5 mm
Top plate: 2 mm
Mid plate: 3 mm
Bottom plate: 2.5 mm
Frame weight: 51 g, excluding 3D prints and arm braces
Stack and VTX mounting: 20 × 20 mm
Camera width: 14 mm nano
Maximum stack height: 25 mm

The frame kit

Reference kit contents

4 arms
1 top plate
1 mid plate
1 bottom plate
2 arm braces
Hardware kit
Battery pad
1 Kevlar battery strap

Electronics, motors, propellers, batteries, action cameras and additional printed accessories shown in build photos are not included in the frame kit. Refer to the itemized kit contents above.

Recommended build parts

Suggestions from the supplied Slowstyle build guide. Confirm component dimensions and mounting requirements before selecting your setup.

Motors (2100–2200 kV): RCinpower Wasp Major V2, Wasp Major EVO, GTS v4 UL, Wasp Major EVO Plus; T-Motor F50; VCI Spark Pro, Yuki, Yuki Savage; Emax RSII; Axisflying AF227 / AF236
Flight controllers: Sequre H743; HDzero Halo FC (HD only); T-Hobby F7 Mini v2; NewBeeDrone RS200; Foxeer F722; Rush Blade F722 (analog / HD)
ESCs: T-Hobby Velox V70A; Sequre Blueson A1 70A AM32; HDzero Halo ESC; ZEXFPV Borey F4 80A Mini; T-Hobby F60A; Foxeer Slim 60A; Flycolor Trinx G20; Rush 60A Explorer. The supplied guide also names Flycolor Minjae as forthcoming; availability is not confirmed.
HD video: HDzero Race v3 with Nano90 V2
Analog VTX: TBS Unify Pro32 Nano; Rush Tank Tiny; Rush Race II
Analog cameras: Foxeer Predator v5 Nano; Runcam Racer Nano4; Foxeer Predator v5 Nano FIVE33 Edition

Build photography

Development gallery

Supplied photographs show different configurations. Equipment and accessories vary between builds and are not included unless listed in the kit contents.

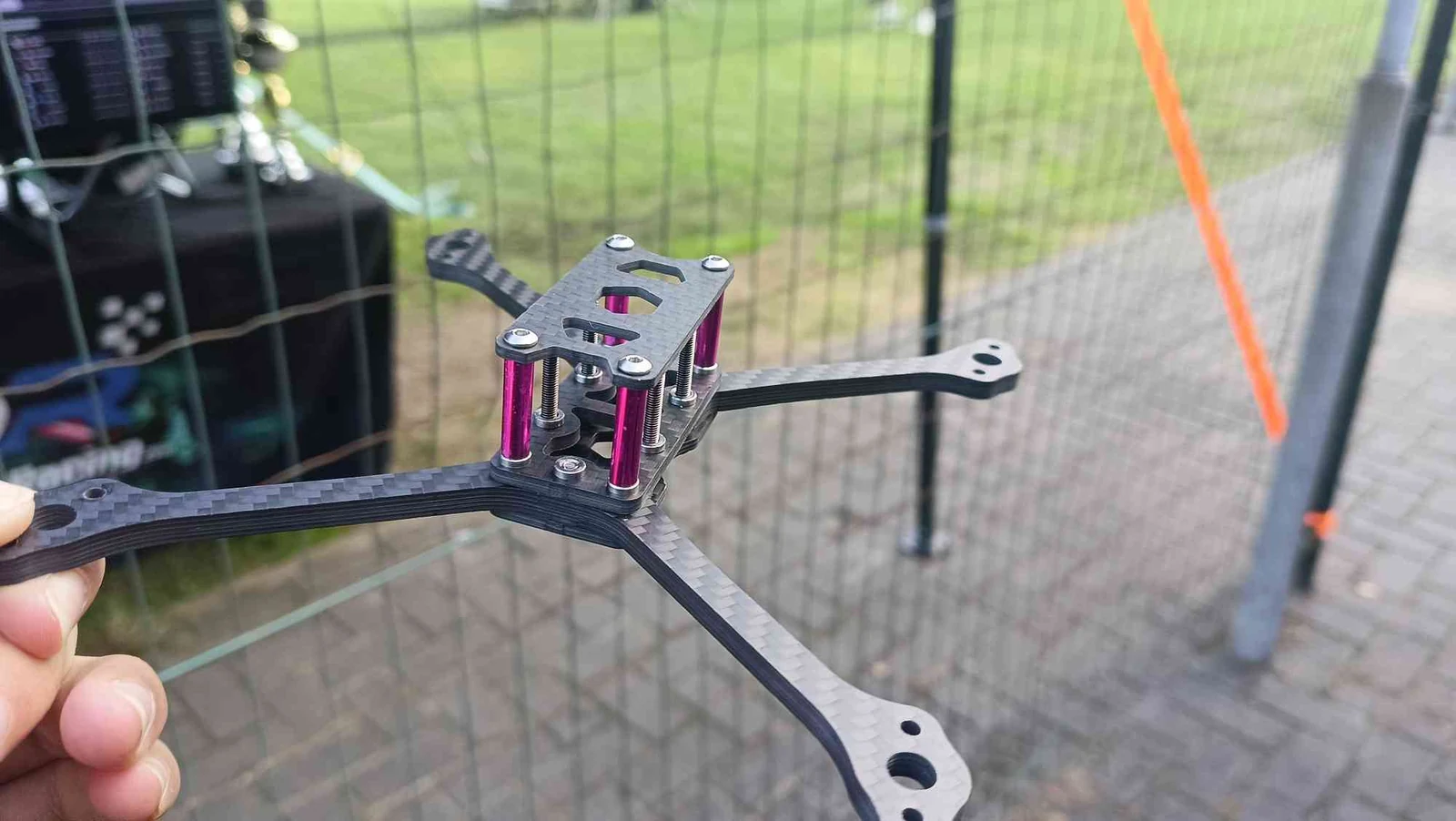

HexR5 frame assembly without horizontal braces.

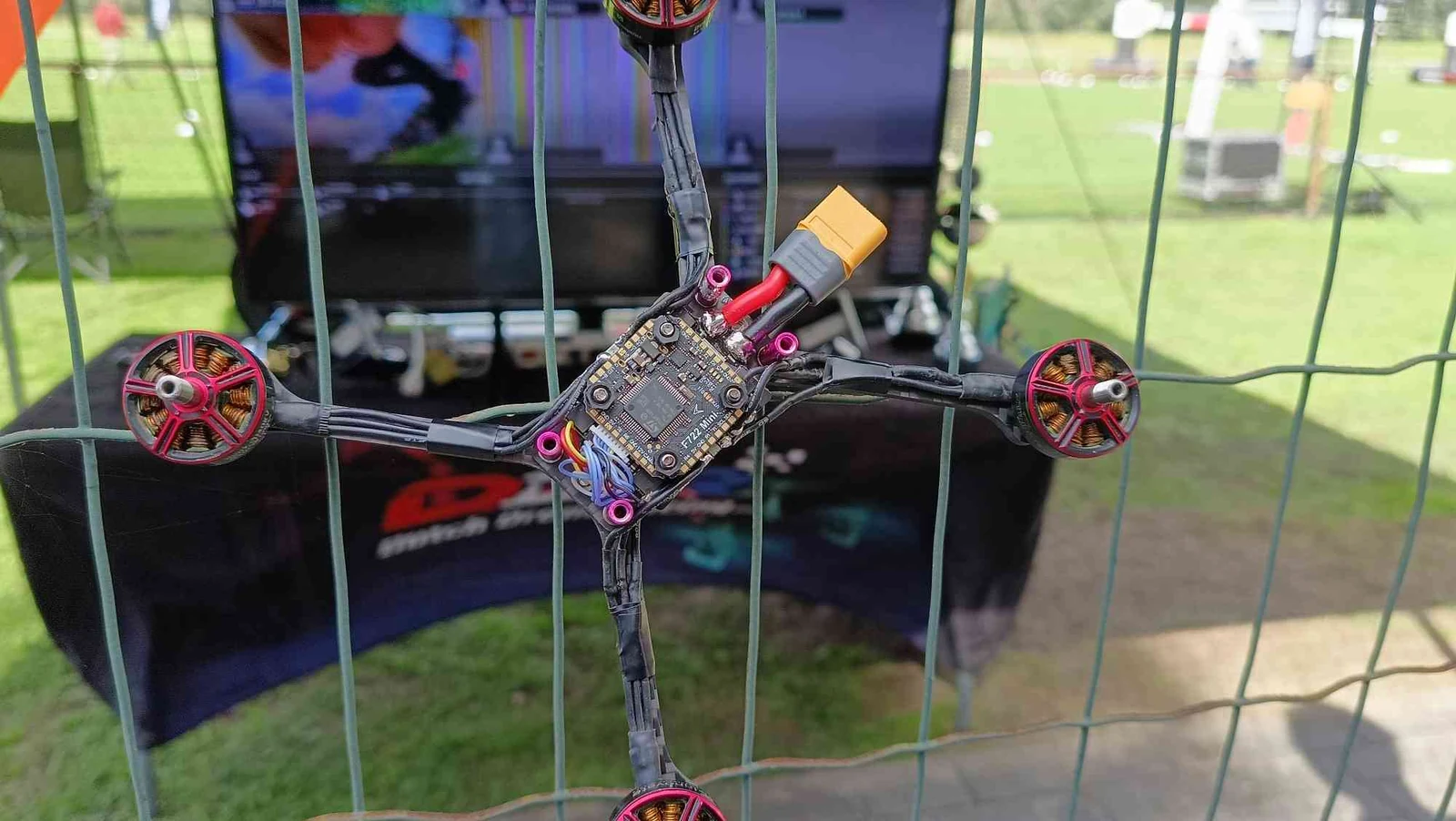

HexR5 build detail with electronics installed. Electronics are not included.

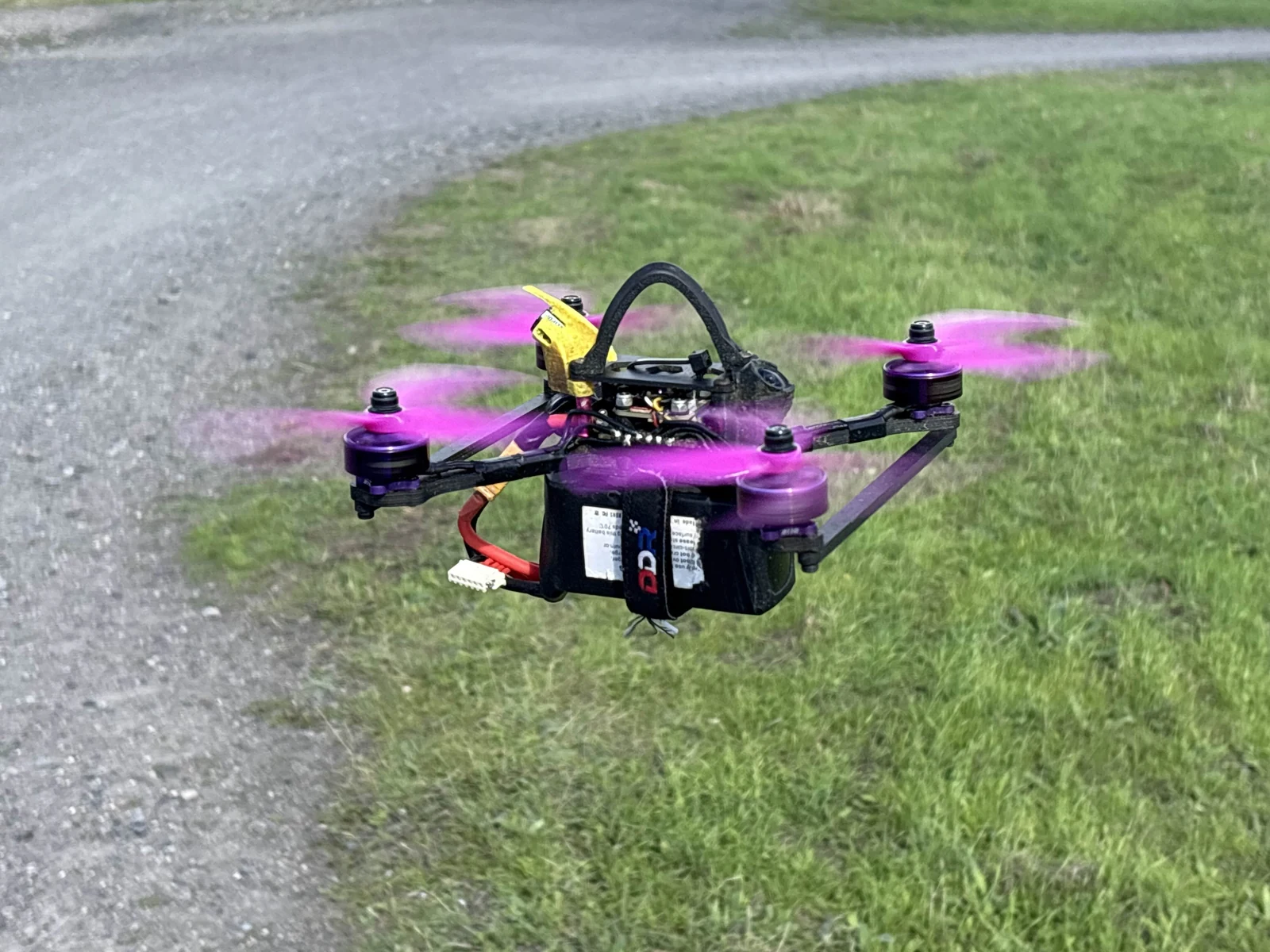

Assembled HexR5 build pictured in flight with horizontal braces.

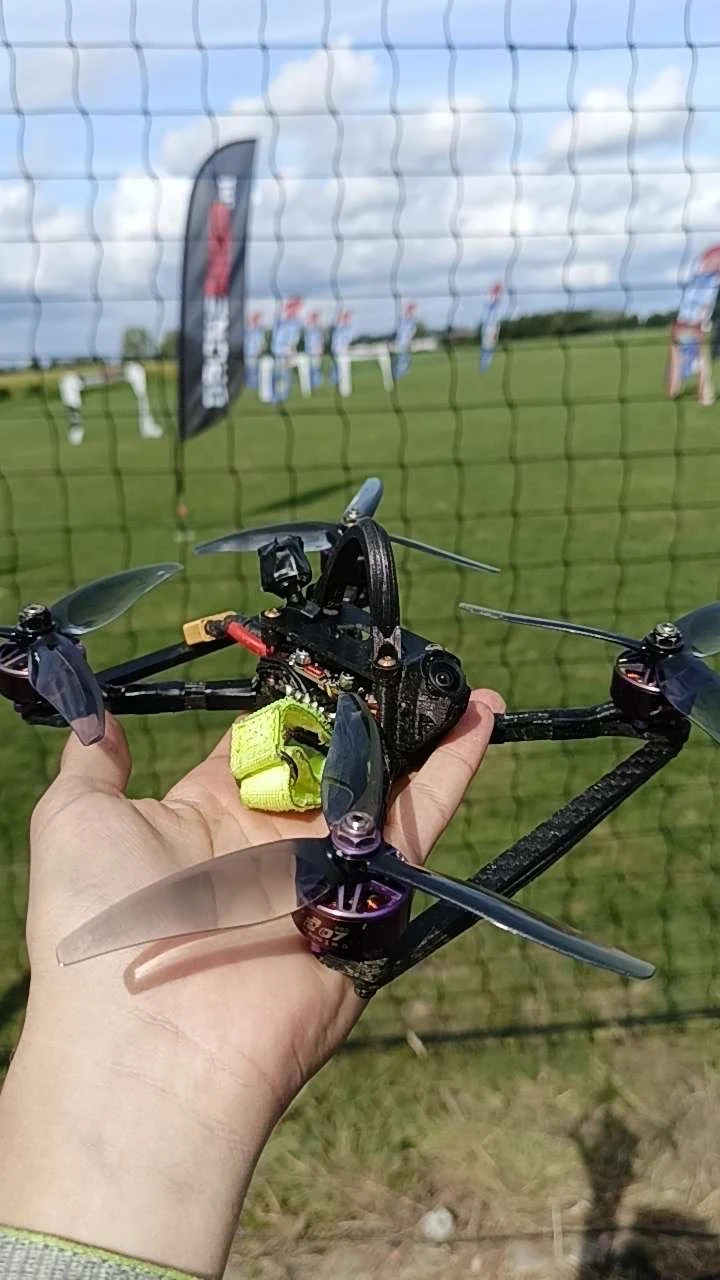

Assembled HexR5 development build with horizontal braces.

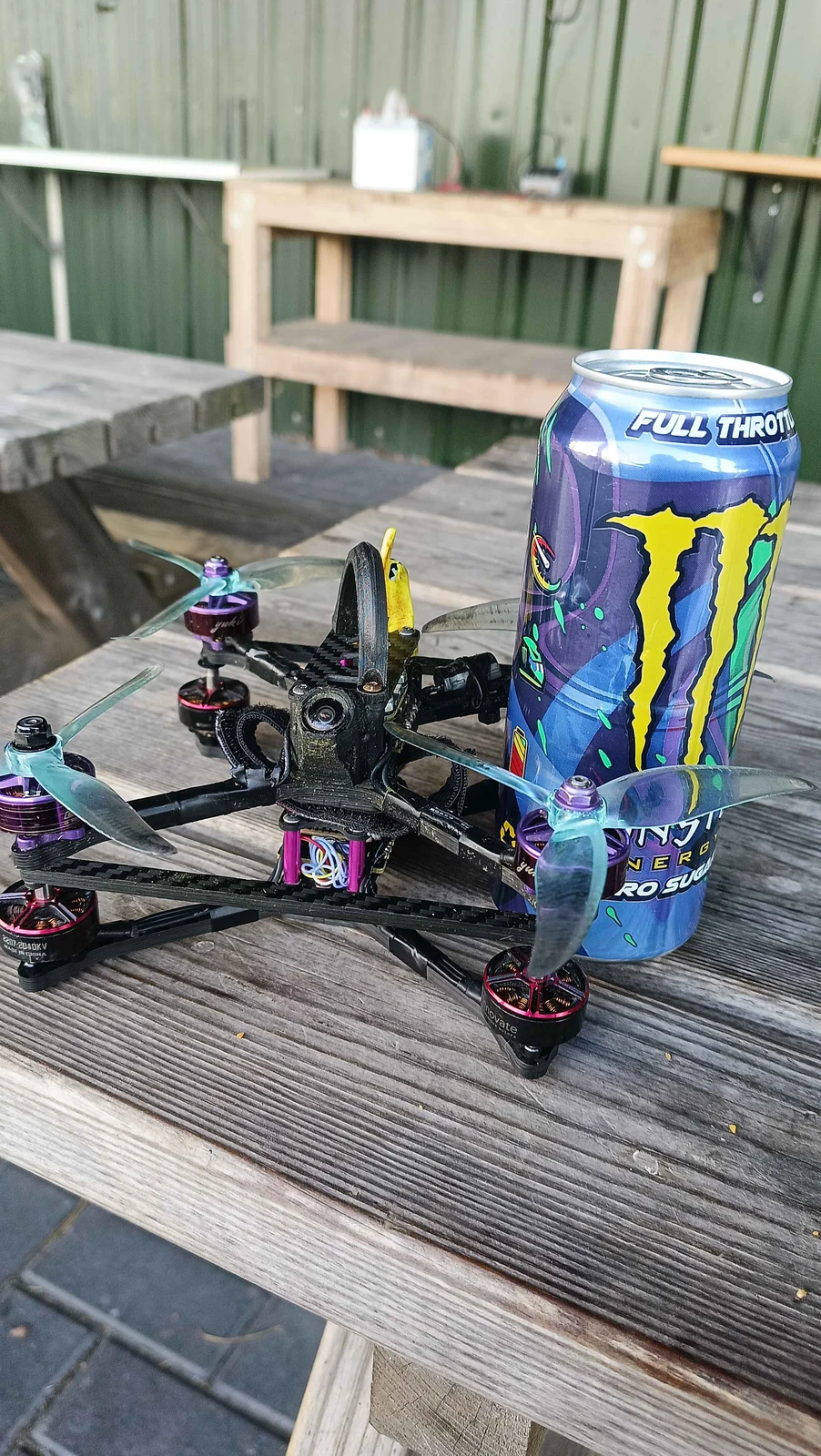

HexR5 development build details. Equipment and accessories vary between configurations.
