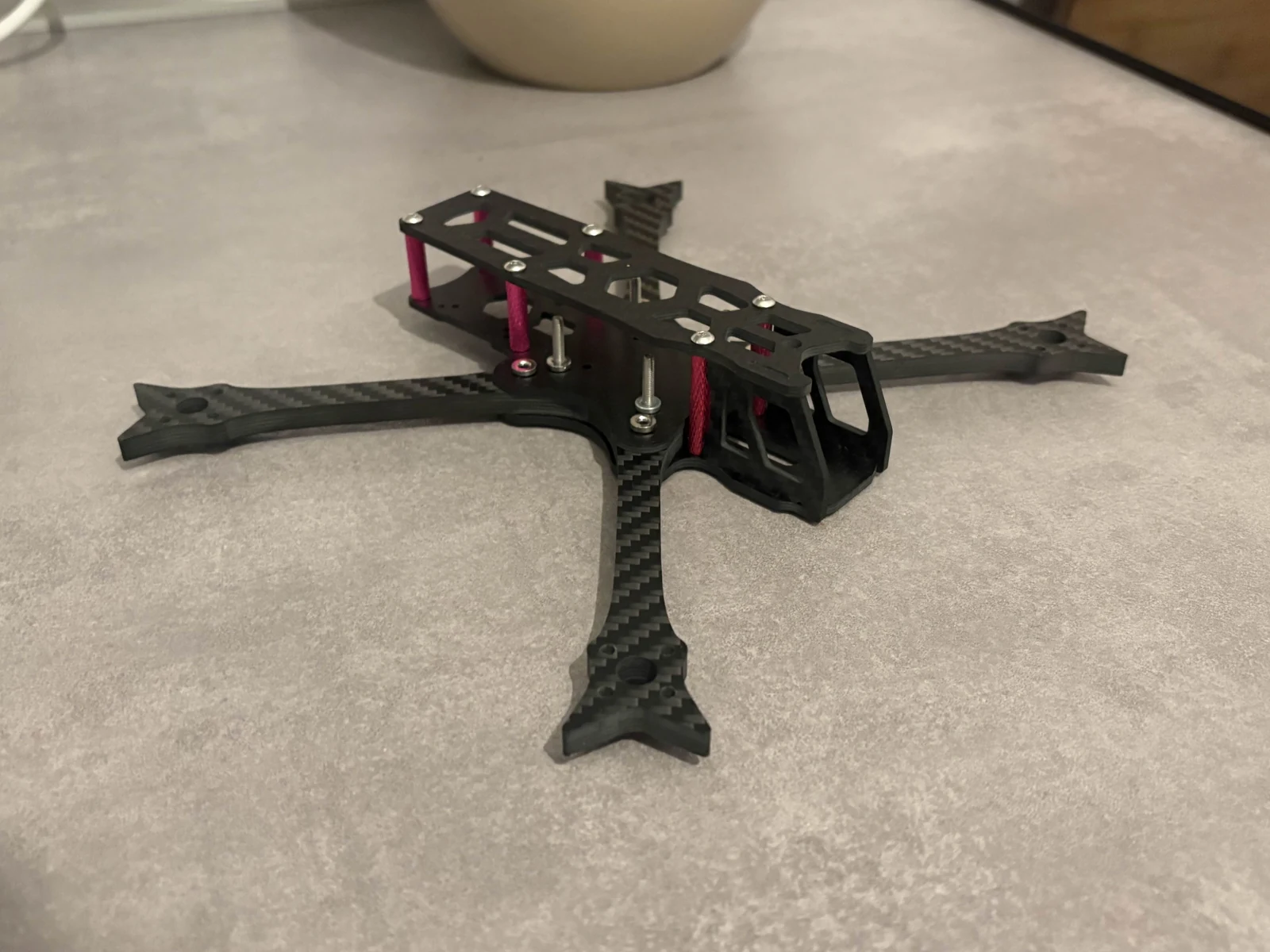

HexFR5 frame assembly. Refer to the kit list for included components.

Slowstyle / Freestyle frame

Slowstyle HexFR5 Freestyle Frame

Out of stock — available for preorder

A 5-inch freestyle frame for your next build. The HexFR5 combines 6 mm arms with a compact rear section and mounting options for a range of flight controllers and video systems. Designed in Germany and manufactured in the United States.

$67.69 USD

Preorder this frame ↗

Expected delivery January 2027

Preorder today. Delivery timing is an estimate, not a guarantee. The price includes US/EU shipping and applicable tax.

Ask about this frame ↗

Build details

Specifications

Arms: 6 mm
Top / mid / bottom plates: 2.5 mm each
Camera plates: 2 mm
Frame weight: 116 g, excluding 3D prints
Stack mounting: 20 × 20 mm and 30 × 30 mm
VTX mounting: 20 × 20 mm and 25.5 × 25.5 mm
Camera width: up to 20 mm
Fit note: VTX units longer than 34 mm, including the TBS Unify Pro32 DP, do not fit the short rear section unless mounted sideways.

The frame kit

What’s included

4 arms
1 top plate
1 mid plate
1 bottom plate
2 camera plates
Hardware kit
Battery pad
2 Kevlar battery straps
2 camera-plate TPU inserts

Electronics, motors, propellers, batteries, action cameras and additional printed accessories shown in build photos are not included in the frame kit. Refer to the itemized kit contents above.

Recommended build parts

Suggestions from the supplied Slowstyle build guide. Confirm component dimensions and mounting requirements before selecting your setup.

Motors (1800–2200 kV): RCinpower GTS v4; Axisflying Blackbird V4
Flight controllers: T-Hobby Velox F7 SE; Sequre H743; HDzero Halo FC (HD only); T-Hobby F7 Mini v2
ESCs: T-Hobby Velox V70A; Sequre Blueson A2 70A AM32; Sequre Blueson A1 70A AM32; HDzero Halo ESC; ZEXFPV Borey F4 80A Mini
HD video: DJI O4 Pro Air Unit; HDzero Freestyle v2 with Nano90
Analog VTX: TBS Unify Pro32 DP; RushFPV Max Solo / Tank Solo; Foxeer Reaper Extreme 2.5W. Check the 34 mm rear-fit limit above.
Analog cameras: Foxeer T-Rex Micro; Foxeer Predator v5 Nano; Runcam Racer Nano4

Build photography

Frame & build gallery

Supplied photographs show different configurations. Equipment and accessories vary between builds and are not included unless listed in the kit contents.

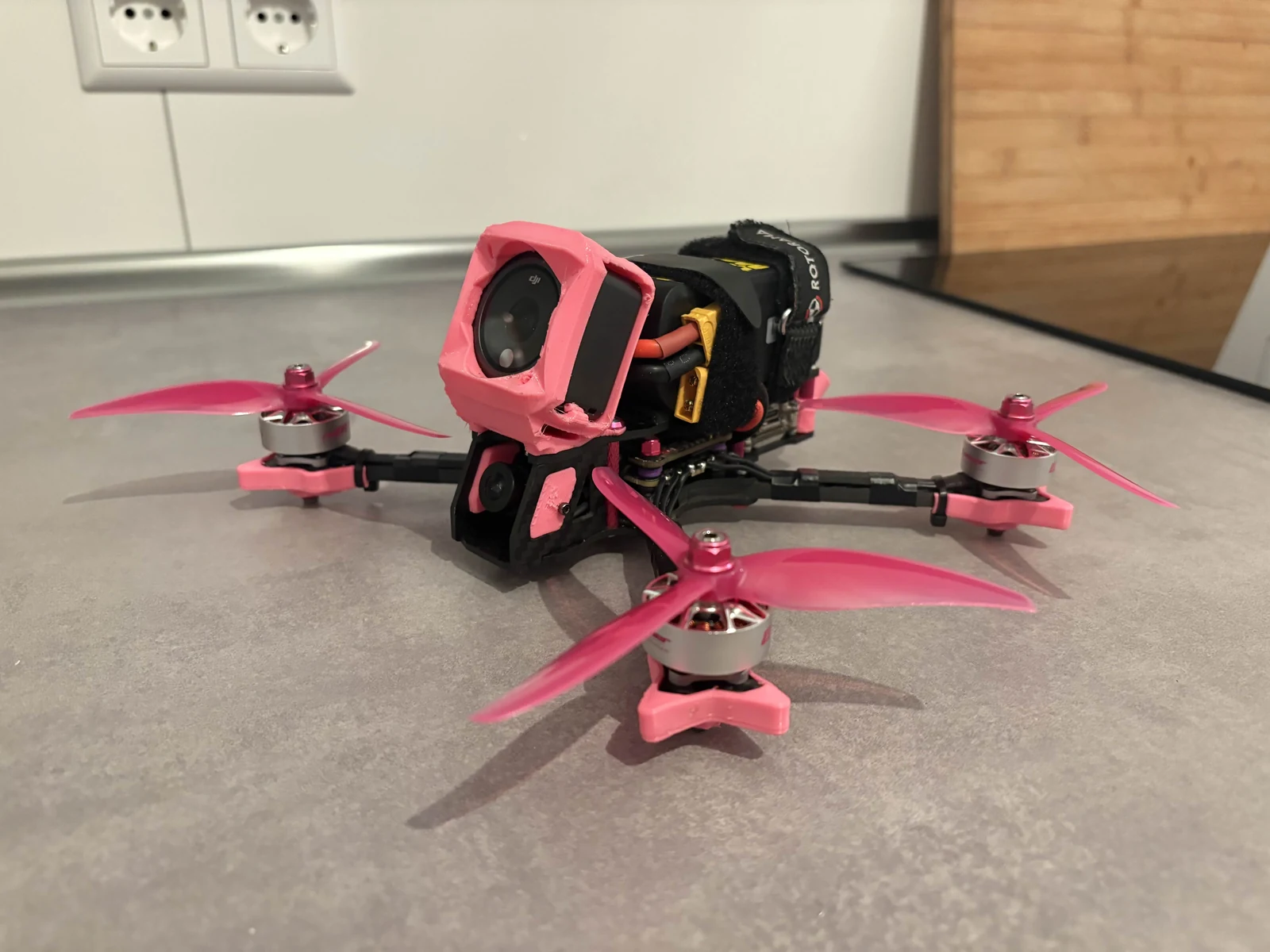

Assembled HexFR5 build on the workbench. Electronics and accessories shown are not included.

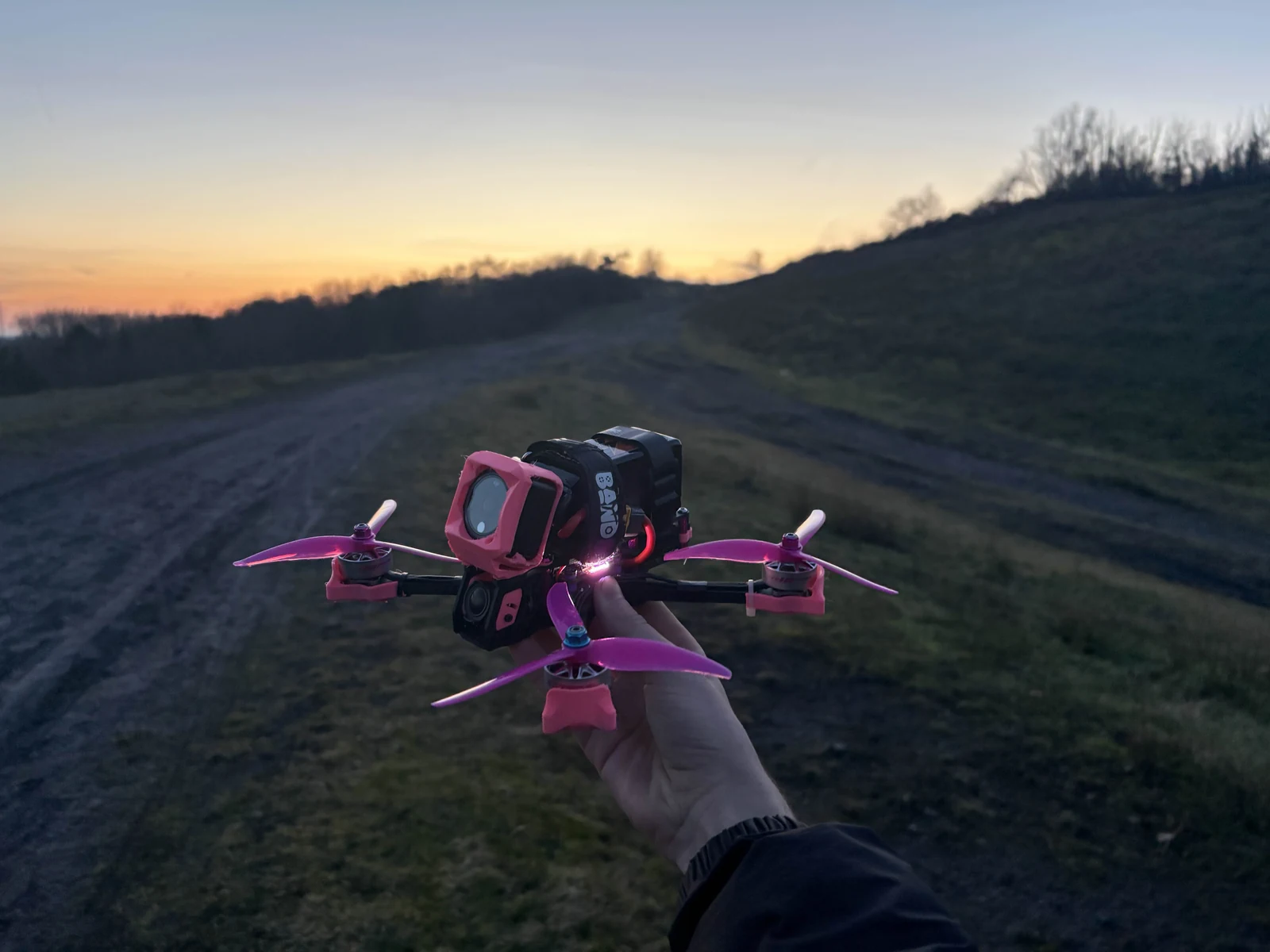

Assembled HexFR5 build outdoors at dusk.

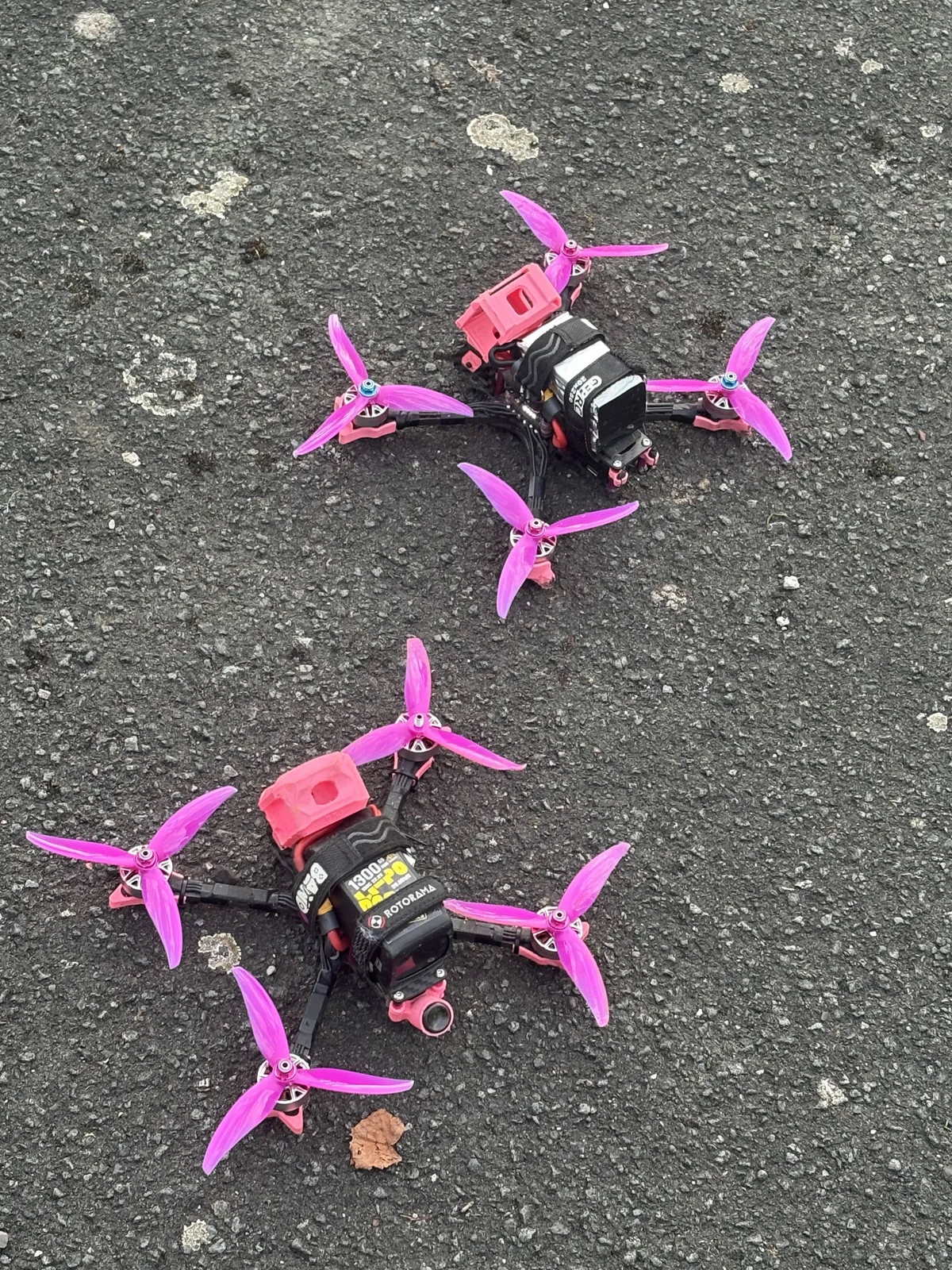

Two assembled HexFR5 builds. Equipment and accessories vary by build.
